Key Specification
|
||||||||||||||
|

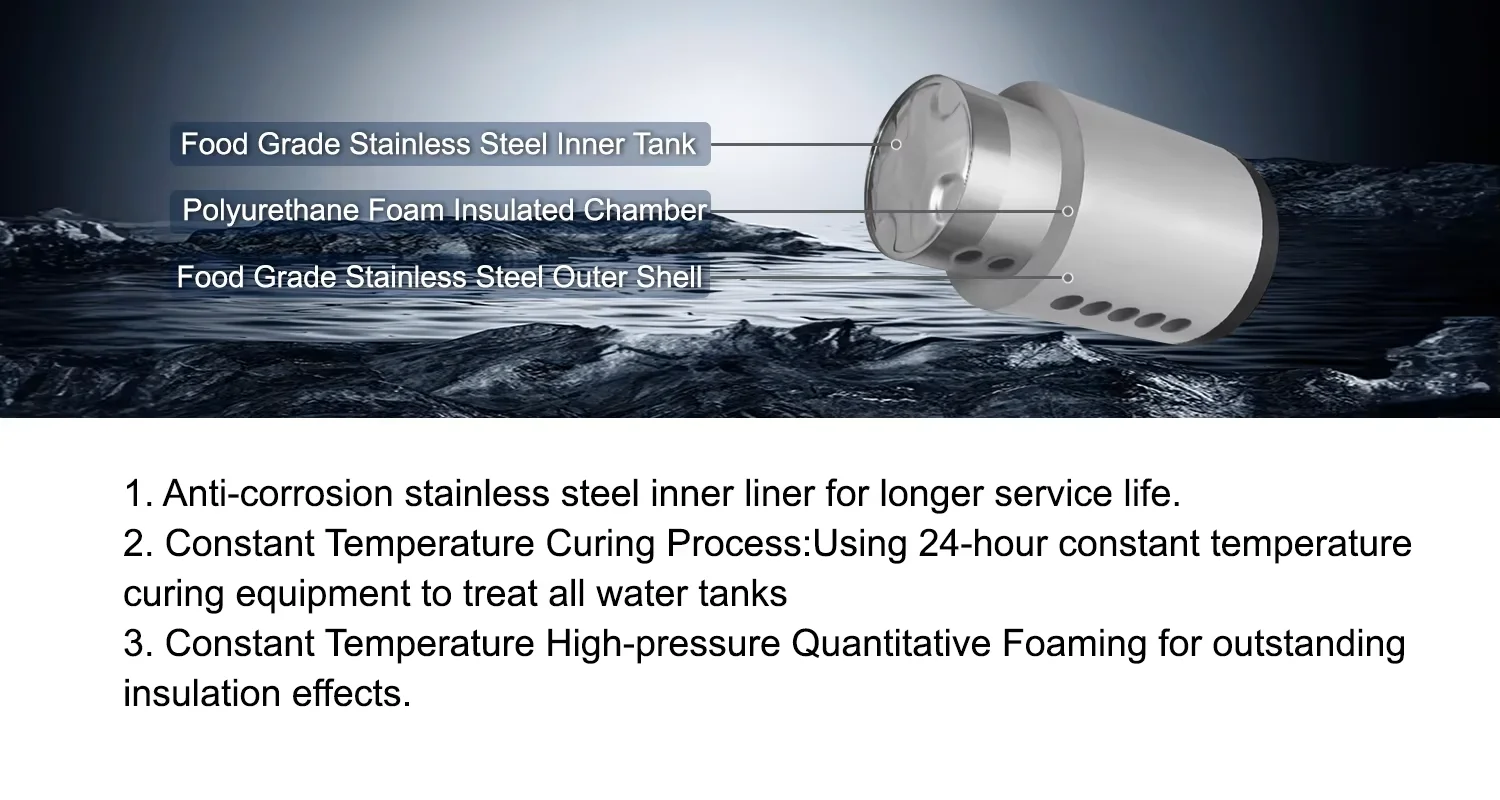

Inner tank
|
stainless steel SUS304
|
|||||||||||||
|

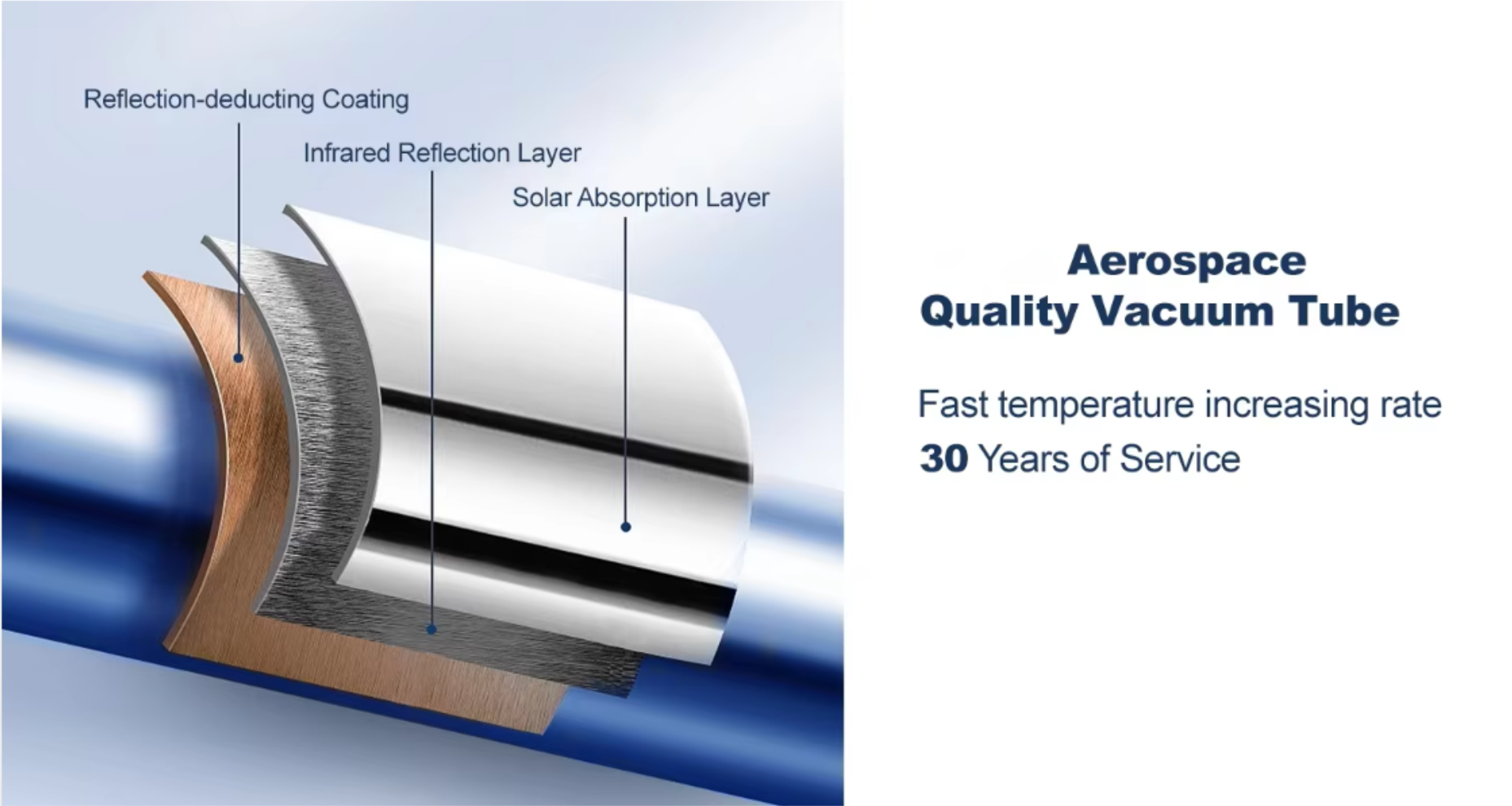

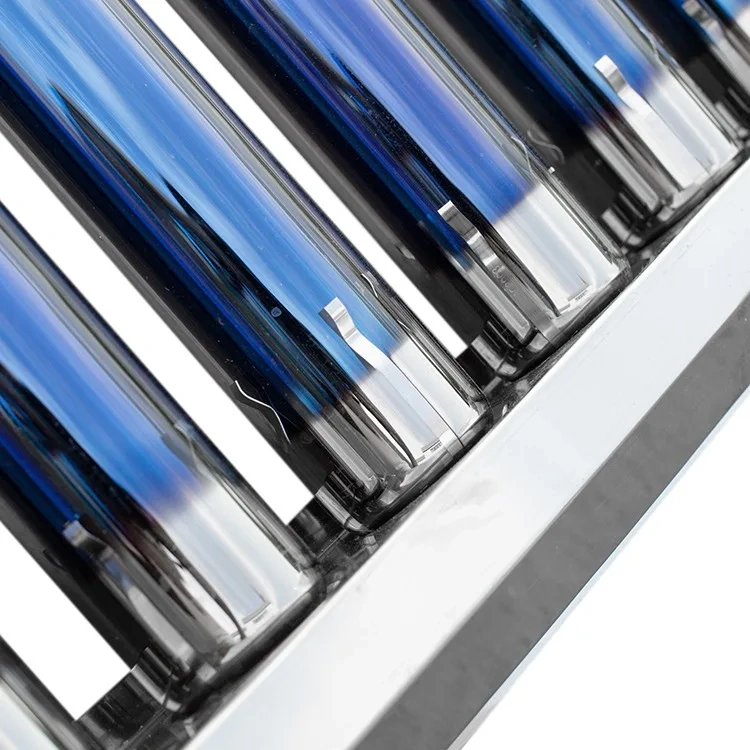

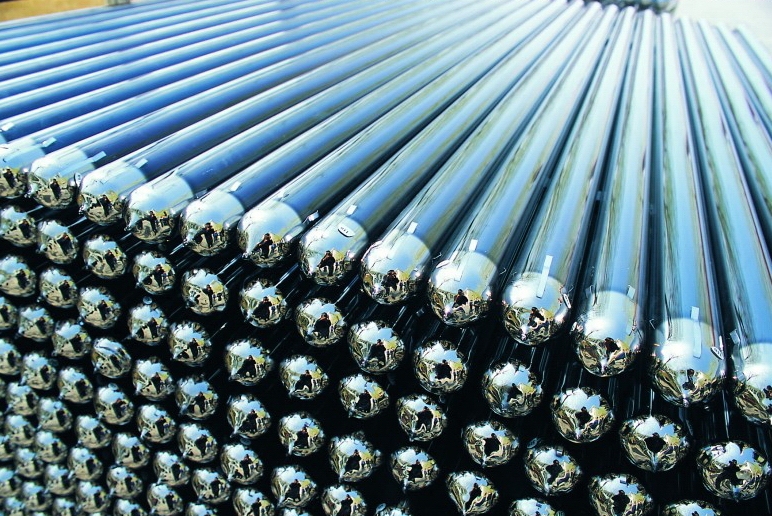

Vacuum tube
|
QB-AL-N/AL-47-1500
|
|||||||||||||
|
Outer tank
|
stainless steel SUS201/Galvanized steel
|
|||||||||||||
|

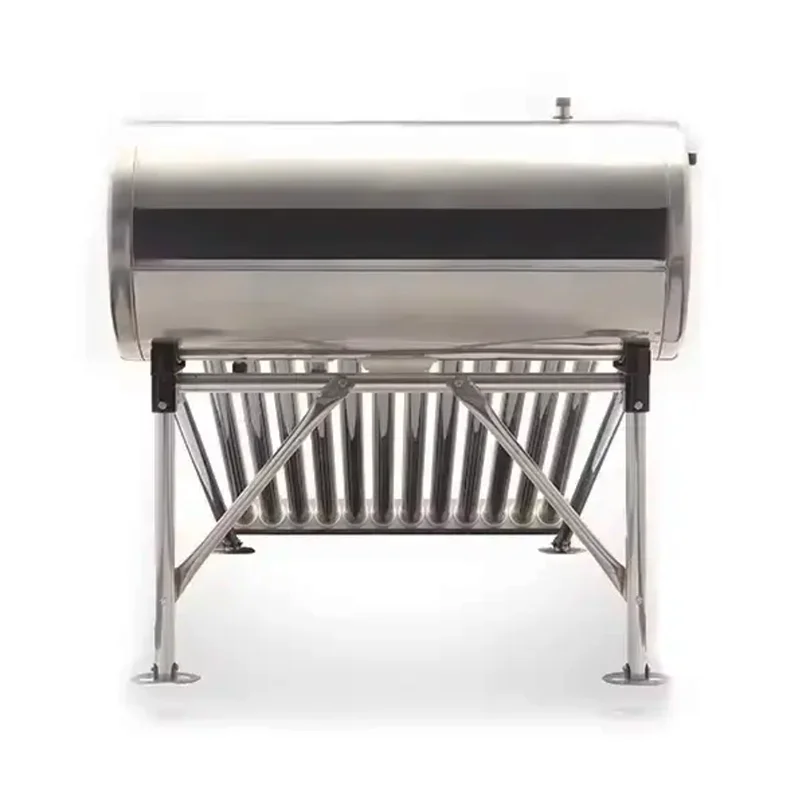

Frame
|
stainless steel SUS201/ Galvanized steel-1.5mm
|
|||||||||||||
|
Insulation
|
Polyurethane
|
|||||||||||||
|
Reflector
|
stainless steel
|
|||||||||||||
|
Solar heat storage tank diameter(mm)
|
Ø360*Ø450
|
|||||||||||||
|
Thickness, insulated(mm)
|
45、50
|
|||||||||||||
|
Vent connection(inch)
|
3/4
|
|||||||||||||
|
Electric heater connection(inch)
|
1
|
|||||||||||||
|

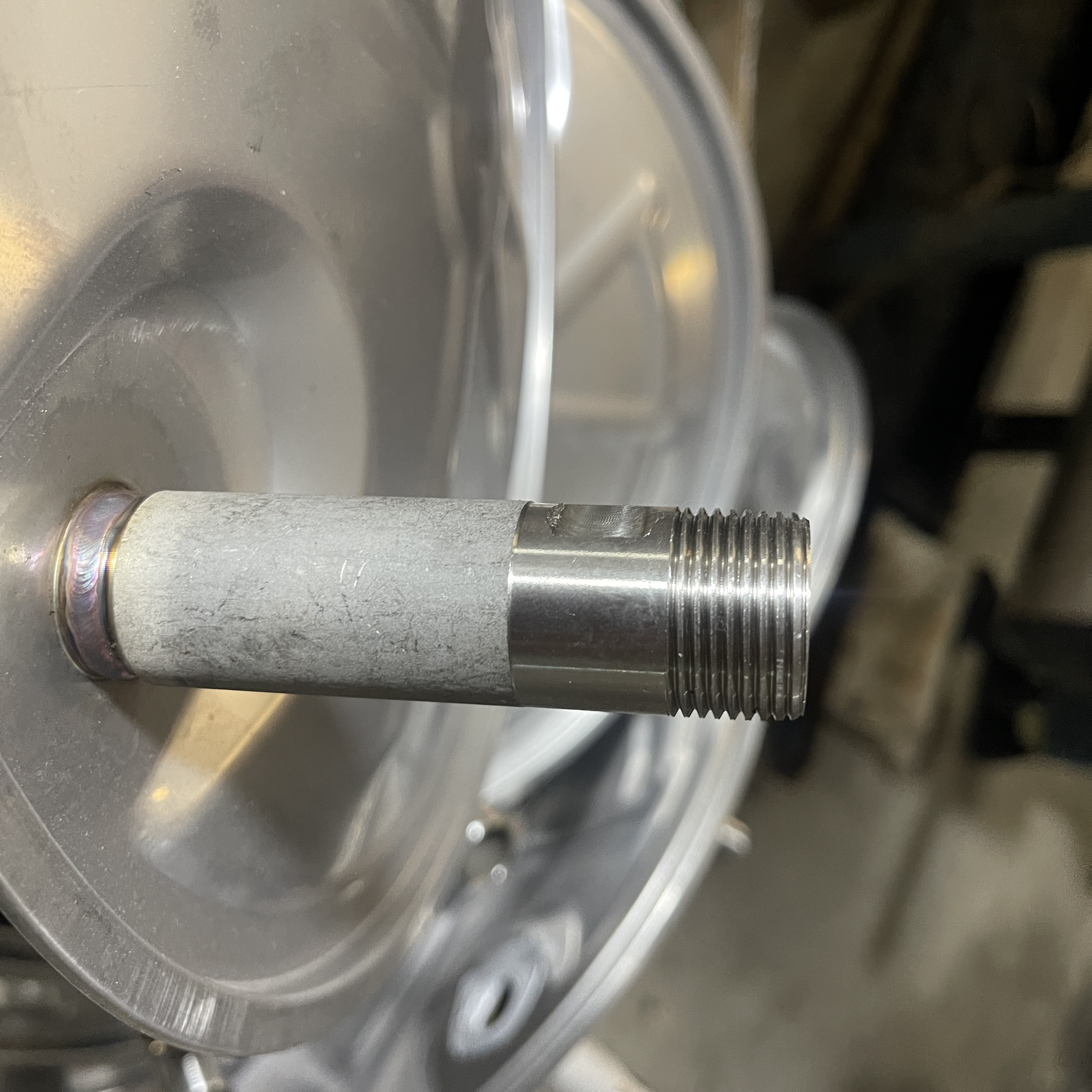

Water connection(inch)
|
3/4
|
|||||||||||||
|
Collector angle(degree)
|
20/30/45
|
|||||||||||||
|
Type (one)
|
Area
|
Vacuum tube
|
Volume
|
Gross weight
|
Volume/set
|
|||||||||
|
(m^2)
|
(Liters)
|
(kg)
|
(Cubic meter)
|
|||||||||||
|
Length
|
DIA(mm)
|
Qty(pcs)
|
||||||||||||
|
(mm)
|
||||||||||||||
|

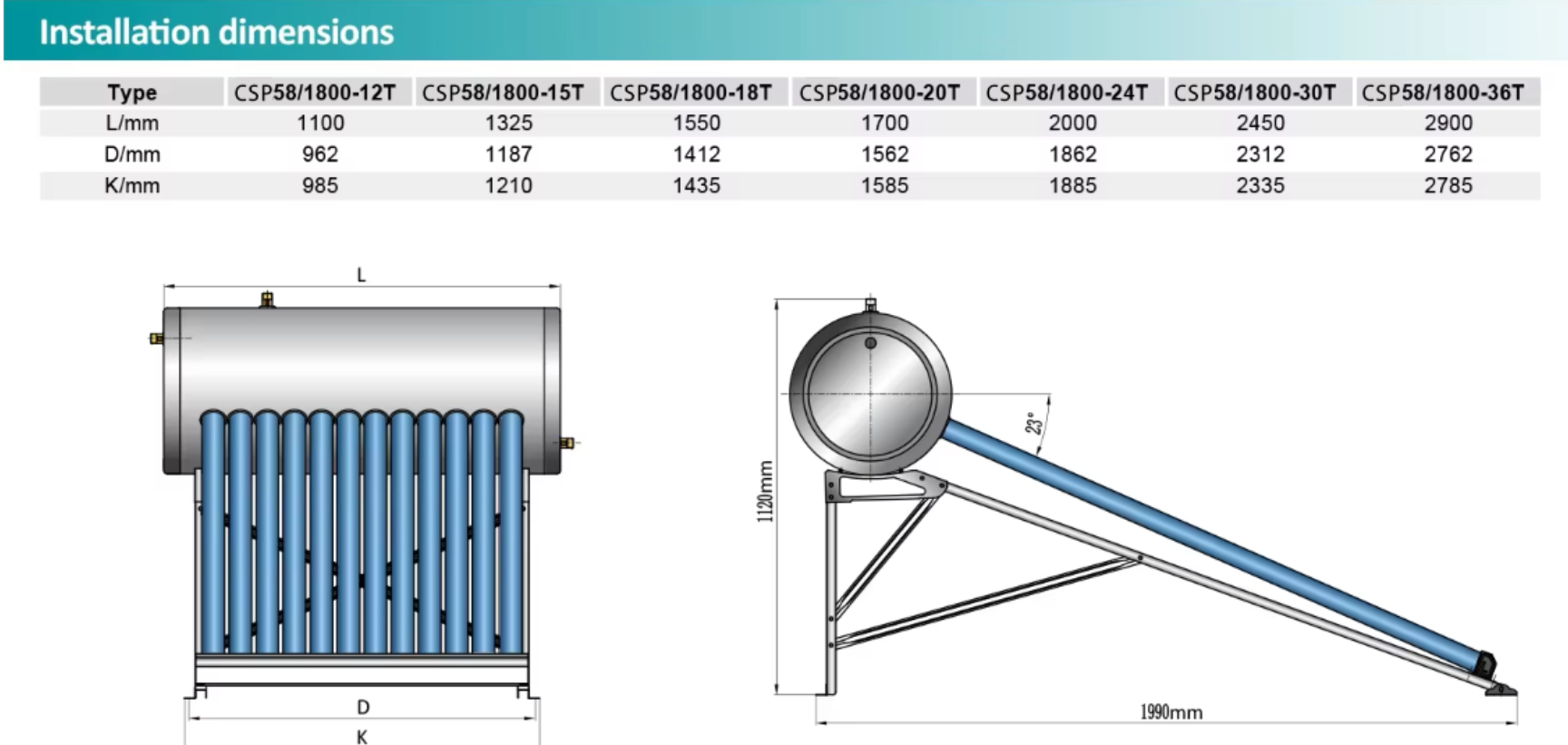

CSP58/1800-15
|
1.92
|
1800
|
58
|
15
|
135
|
49
|
0.52
|
|||||||
|
CSP58/1800-18
|
2.3
|
1800
|
58
|
18
|
156
|
58
|
0.62
|
|||||||
|
CSP58/1800-20
|
2.55
|
1800
|
58
|
20
|
172
|
65
|
0.68
|
|||||||
|
CSP58/1800-24
|
3.06
|
1800
|
58
|
24
|
206
|
76
|
0.79
|
|||||||
|
CSP58/1800-30
|
3.82
|
1800
|
58
|
30
|
260
|
92
|
0.97
|
|||||||
Answer: We already did many projects around the world,production line have been exported to more than 20 countries around the world.such as Greece,India,Uzbekistan,Tajikistan,Spanish,Brazil,Mexico and etc.
Q2: Do you have any other products?
Answer: Yes, we also have all of solar themal products,including solar water heater,solar collector,solar vacuum tube and spare parts of solar water heater
Q3: What are your payment terms?
Answer: 50% by T/T in advance, 50% by T/T before loading
Q4: What is your price like?
Answer: Our prices are very reasonable and cost-effective.
Q5: Do you support OEM and ODM?
Answer:Yes,we can customize the product for you
Q6: Why choose us for production line cooperation?
Answer:We provide a full range of services,including product design,equipment manufacturing,factory layout design,equipment installation and commissioning,technical training,production management and spare parts procurement.
Q7: What's the projects you did?
Answer:
1.Flat-plate solar collector and enamel water tank production line in Europe
2.Electric water heater production line in Uzbekistan,China first full production line export.
3.Solar and electric water heater production line in India,the largest factory in India.
4.Solar and electric water heater production line in Tajikistan and Kuwait
5.Roll forming line in Brazil and Greece.
Q8: What is your delivery time?
Answer:This depends on the production line machines quantity,around 1 month can delivery
Q9: What are the terms of your delivery?
Answer:We accept terms such as EXW, FOB, and CIF.
Q10: Do you have a certificate?
Answer:Most of our products have passed CE certification. If you need other certifications, we can assist you in completing them
