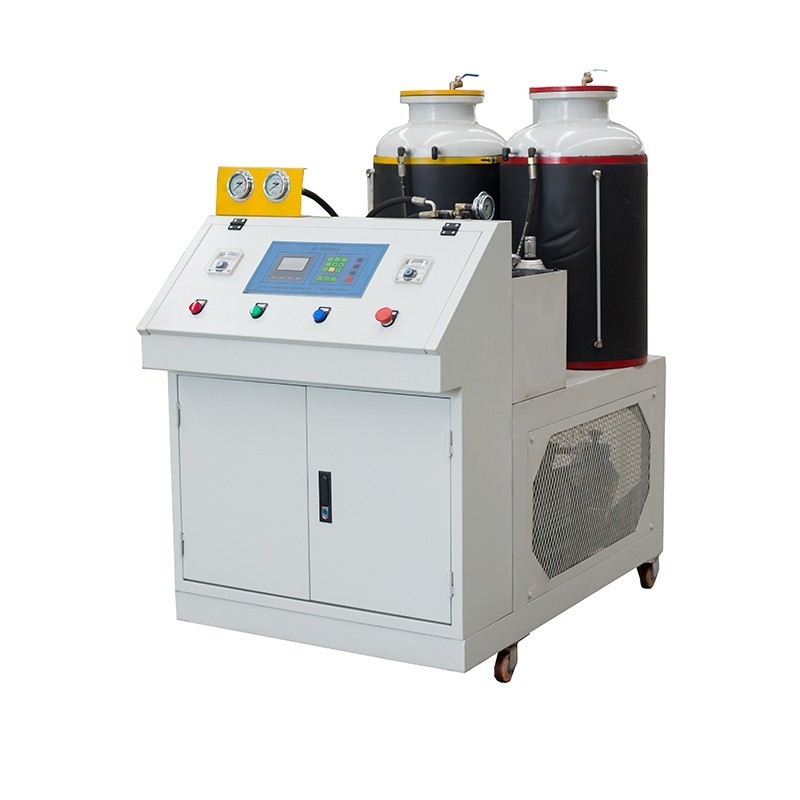

Small Hydraulic Perfusion Machine
is a hydraulic driven high pressure foaming system after the launch of pneumatic high pressure foaming machine. The system adopts SBP technology to ensure the stability of the liquid flow pressure of the raw material, so that the two-component raw material is mixed more evenly.
The compact, simple and optimized structure of the injection gun reduces the vulnerable parts, and the strong power solves the problem of the blocking gun of the small foaming equipment. Humanized operating platform, so that the machine operation more simple, can be easily mastered.
Scope of Application
Solar water heater, electric water heater, insulation pipe joints and other hard foam sandwich filling.
Technical Parameter
1. Working flow: 1-20kg /min
2. Working pressure: 5-15MPa
3. Power consumption: about 10KW
4. Raw material ratio: 1:1.2 (adjustable)
5. Gun head cleaning method: Free cleaning
6. Control mode: PLC+ touch screen
7. Injection capacity: 20Kg/min (1:1).
8. Casting repetition accuracy: s +2%.
9. Injection time: 0.02- -99.99S (accurate to 0.02S).
10. Hydraulic power: 10-20mpa.
11. Main power supply: 380V 50Hz
Parameters
| MODEL |
Inlet Diameter | Outlet Diameter | Rotational speed/min |
MAX Flow/min |
Watt | size | Weight |
| BH(Y)-10 | 1/2 | 1/4 | 1400 | 10kg/Min | 4.4kw | 1250*850*1500 | 120kg |
| BH(Y)-20 | 1/2 | 1/4 | 1400 | 20kg/Min | 6kw | 1250*850*1750 | 150kg |
Use of Small Hydraulic Perfusion Machine
Answer: We already did many projects around the world,production line have been exported to more than 20 countries around the world.such as Greece,India,Uzbekistan,Tajikistan,Spanish,Brazil,Mexico and etc.
Q2: Do you have any other products?
Answer: Yes, we also have all of solar themal products,including solar water heater,solar collector,solar vacuum tube and spare parts of solar water heater
Q3: What are your payment terms?
Answer: 50% by T/T in advance, 50% by T/T before loading
Q4: What is your price like?
Answer: Our prices are very reasonable and cost-effective.
Q5: Do you support OEM and ODM?
Answer:Yes,we can customize the product for you
Q6: Why choose us for production line cooperation?
Answer:We provide a full range of services,including product design,equipment manufacturing,factory layout design,equipment installation and commissioning,technical training,production management and spare parts procurement.
Q7: What's the projects you did?
Answer:
1.Flat-plate solar collector and enamel water tank production line in Europe
2.Electric water heater production line in Uzbekistan,China first full production line export.
3.Solar and electric water heater production line in India,the largest factory in India.
4.Solar and electric water heater production line in Tajikistan and Kuwait
5.Roll forming line in Brazil and Greece.
Q8: What is your delivery time?
Answer:This depends on the production line machines quantity,around 1 month can delivery
Q9: What are the terms of your delivery?
Answer:We accept terms such as EXW, FOB, and CIF.
Q10: Do you have a certificate?
Answer:Most of our products have passed CE certification. If you need other certifications, we can assist you in completing them
