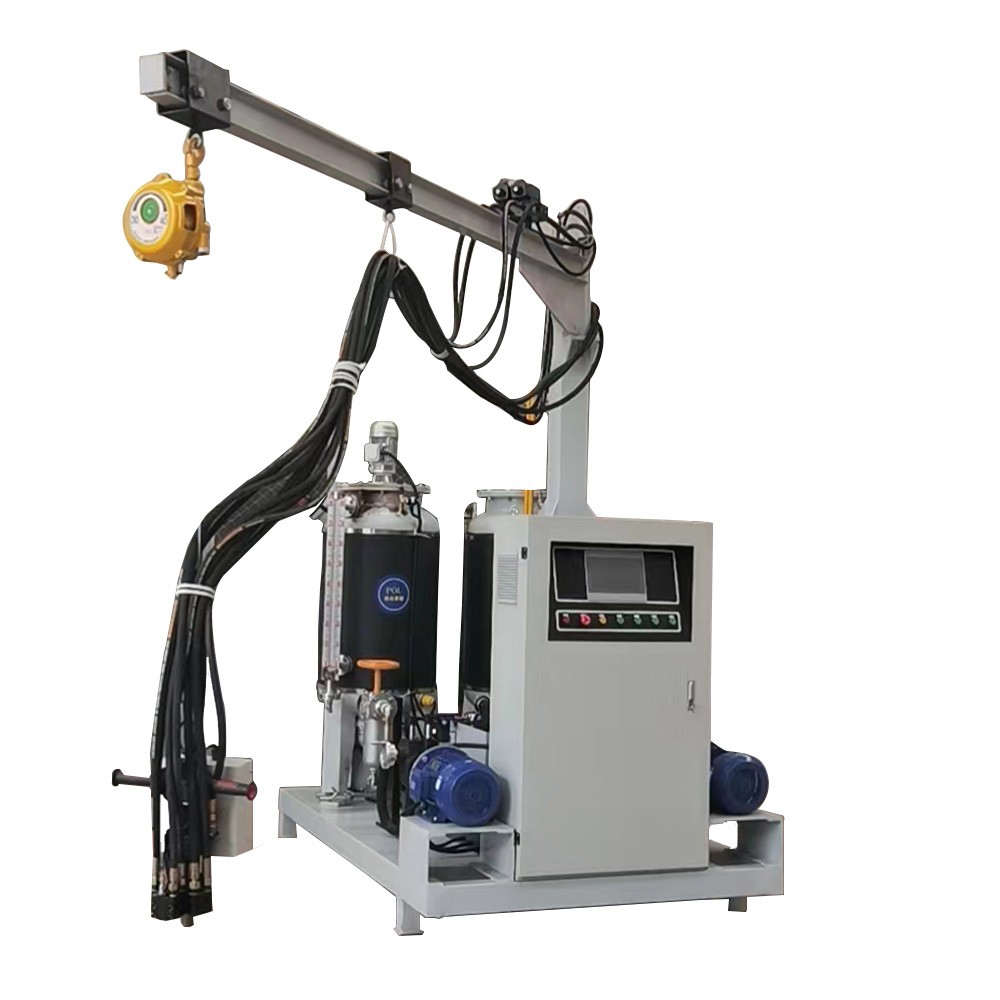

Refrigerator Freezer Polyurethane High Pressure Foaming Machine
Flow Rate: 300g/s-6800g/s
Refrigerator Freezer Polyurethane High Pressure Foaming Machine:
1, electrical control: cold storage board polyurethane high pressure foaming machine uses Siemens PLC, Schneider accessories based electrical control system. Full modular integrated control of all processes, simple operation, intelligent stability.
2. Fault self-inspection early warning system: The system can give early warning in advance, so that relevant parameters can be adjusted in time to avoid the appearance of defective products.
3, mixing device: self-cleaning/anti-reverse/anti-splash point/linear (2 times mixing function) foam gun, beautiful structure, operator, polyurethane special pump, accurate injection, good mixing effect.
Conditions of use
| Component | Viscosity | Foaming temperature ℃ | Mixing Ratio |
| A （Polyether polyols） | <2500 | 25±3 | 1:1.5-1.5:1 |
| B （Isocyanate） | 800~2500 | 25±3 | 1:1.5-1.5:1 |
Polyurethane Foaming Machine Parameters
| Item Model |
PH-(R/F)-40 | PH-(R/F)-150 | PH-(R/F)-220 | PH-(R/F)-300 | PH-(R/F)-400 |
| Injection volume(g/s) | 300-600(g/s) | 1000-2300(g/s) | 1500-3400(g/s) | 2000-4800(g/s) | 2500-6800(g/s) |
| Mixing head type | ZT-20M |
ZT-50M | ZT-80M | ZT-160M | ZT-250M |
| Rated Power (KW) | 22 |
38 |
45 |
80 | 98 |
| Metering pump type | QD-25i | QD-63i | QD-80i | QD-160i | QD-250i |
| Air source | 0.6mpa (Nitrogen optimum) | ||||
| Injection time precision | 0.1s-99.99s |
A:B Injection ratio | 1:1.5-1.5:1 | ||
| Feedstock injection pressure | 8-15mpa | Injection repetition precision | ≤1% | ||
| Temperature control precision | ±2% | Working pressure of hydraulic station | 12-20mpa | ||
Use of Polyurethane Foaming Machine
In insulation filled polyurethane products foaming, such as: floor heating board, aircraft table board, integrated wall board, cold storage board, insulation board, insulation box, insulation water tank, hot water machine, kitchen board, steamed rice cabinet and other industries.
Answer: We already did many projects around the world,production line have been exported to more than 20 countries around the world.such as Greece,India,Uzbekistan,Tajikistan,Spanish,Brazil,Mexico and etc.
Q2: Do you have any other products?
Answer: Yes, we also have all of solar themal products,including solar water heater,solar collector,solar vacuum tube and spare parts of solar water heater
Q3: What are your payment terms?
Answer: 50% by T/T in advance, 50% by T/T before loading
Q4: What is your price like?
Answer: Our prices are very reasonable and cost-effective.
Q5: Do you support OEM and ODM?
Answer:Yes,we can customize the product for you
Q6: Why choose us for production line cooperation?
Answer:We provide a full range of services,including product design,equipment manufacturing,factory layout design,equipment installation and commissioning,technical training,production management and spare parts procurement.
Q7: What's the projects you did?
Answer:
1.Flat-plate solar collector and enamel water tank production line in Europe
2.Electric water heater production line in Uzbekistan,China first full production line export.
3.Solar and electric water heater production line in India,the largest factory in India.
4.Solar and electric water heater production line in Tajikistan and Kuwait
5.Roll forming line in Brazil and Greece.
Q8: What is your delivery time?
Answer:This depends on the production line machines quantity,around 1 month can delivery
Q9: What are the terms of your delivery?
Answer:We accept terms such as EXW, FOB, and CIF.
Q10: Do you have a certificate?
Answer:Most of our products have passed CE certification. If you need other certifications, we can assist you in completing them
