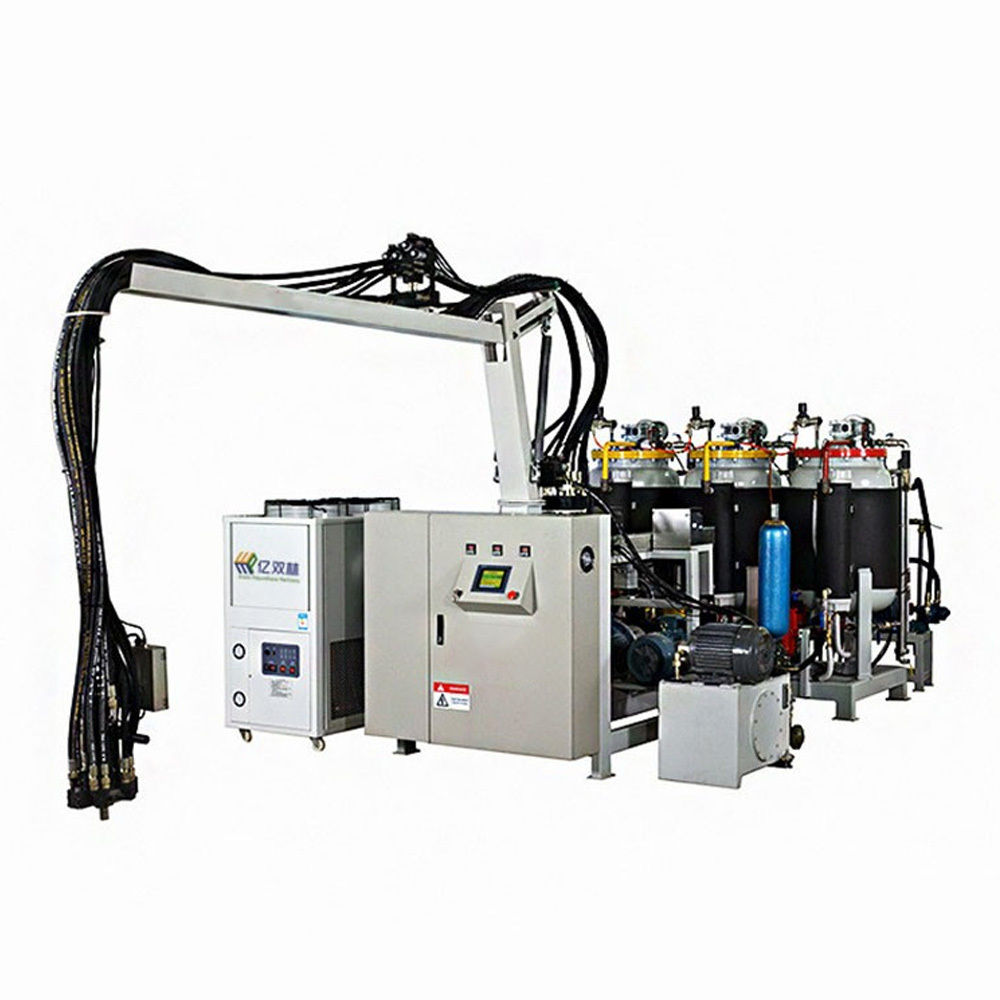

PU 2/4 Multi Component Polyurethane High Pressure Foaming Machine
Industrial PU high-pressure foaming machine with 2/4-component metering, precise ratio control, PLC/HMI and self-cleaning mix head—ideal for insulation, panels and automotive seats.
PU 2/4 Multi Component Polyurethane High Pressure Foaming Machine
can achieve a mixed head deep injection of products with different colors (density), instant conversion of products with different colors, and produces multi-density products for choice. Silence Car Cushion, Memory headrest, motorcycle seat cushion, bicycle saddle, office loose seat, car armrest, child safety seat and other areas. The production process of a variety of different formulations is integrated into one machine through equipment configuration and program setting.
For example, the setting condition of the three-component polyurethane high pressure foaming machine is B+A1 or A2. When the process requirement is B+ A2, the system will automatically convert to the set requirement B+ A2 for perfusion. The setting condition of multi-component is B1+ A1-- B2+A2- - B3+ A3 more than 6 components 3 kinds of formula.
Product characteristics
1. Electrical control: Siemens PLC, Schneider accessories based electrical control system. Full modular integrated control of all processes, simple operation, intelligent stability.
2. Fault self-inspection early warning system: The system can give early warning in advance, so that relevant parameters can be adjusted in time to avoid the appearance of defective products.
3. Mixing device: self-cleaning/anti-reverse/anti-splash point/linear (2 times mixing function) foam gun, beautiful structure, operator, polyurethane pump, accurate injection, good mixing effect
Conditions of use
Component
Viscosity
Foaming temperature ℃
Mixing Ratio
A （Polyether polyols）
<2500
25±3
1:1.5-1.5:1
B （Isocyanate）
800~2500
25±3
1:1.5-1.5:1
Polyurethane Foaming Machine Parameters
Model
Mixing ratio(1:1) (g/s)
Model
Mixing ratio(2:1) (g/s)
Min
Max
Min
Max
PH(R/F)-10
15
100
PH(R/F)-0/10
20
200
PH(R/F)-20
30
300
PH(R/F)-40
50
560
PH(R/F)-40/20
40
400
PH(R/F)-100
150
1530
PH(R/F)-100/40
100
950
PH(R/F)-150
300
2650
PH(R/F)-300
600
5600
PH(R/F)-150/100
200
2100
PH(R/F)-600
1200
11000
Q1:How many projects have you done?
Answer: We already did many projects around the world,production line have been exported to more than 20 countries around the world.such as Greece,India,Uzbekistan,Tajikistan,Spanish,Brazil,Mexico and etc. Q2: Do you have any other products? Answer: Yes, we also have all of solar themal products,including solar water heater,solar collector,solar vacuum tube and spare parts of solar water heater Q3: What are your payment terms? Answer: 50% by T/T in advance, 50% by T/T before loading Q4: What is your price like? Answer: Our prices are very reasonable and cost-effective. Q5: Do you support OEM and ODM? Answer:Yes,we can customize the product for you Q6: Why choose us for production line cooperation? Answer:We provide a full range of services,including product design,equipment manufacturing,factory layout design,equipment installation and commissioning,technical training,production management and spare parts procurement.
Q7: What's the projects you did? Answer: 1.Flat-plate solar collector and enamel water tank production line in Europe 2.Electric water heater production line in Uzbekistan,China first full production line export. 3.Solar and electric water heater production line in India,the largest factory in India. 4.Solar and electric water heater production line in Tajikistan and Kuwait 5.Roll forming line in Brazil and Greece.
Q8: What is your delivery time? Answer:This depends on the production line machines quantity,around 1 month can delivery
Q9: What are the terms of your delivery? Answer:We accept terms such as EXW, FOB, and CIF. Q10: Do you have a certificate? Answer:Most of our products have passed CE certification. If you need other certifications, we can assist you in completing them
