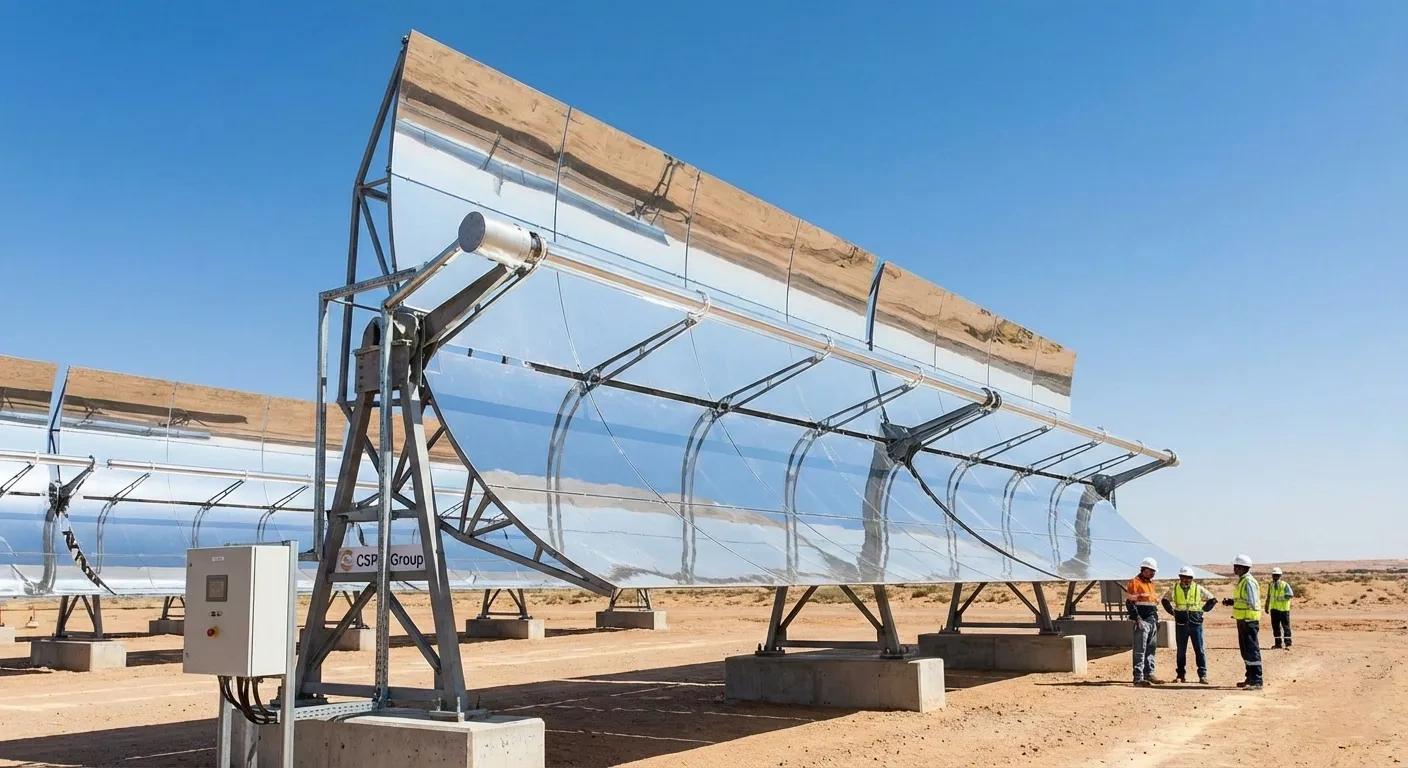

PT-Series High-Efficiency Parabolic Trough Solar Collector (PTSC)
The PT-Series is the premier solution for medium-to-high temperature solar thermal utilization. Developed by CSP Holding Group, it features advanced concentration ratios that boost photothermal efficiency to 3.5x that of traditional PV. Engineered for industrial steam, oil recovery, and CSP power plants, it boasts a 30-year operational lifespan.
1. Proprietary Glass-to-Metal Sealing Holding over 60% market share. Our proprietary sealing process withstands thermal shocks from -50°C to 550°C, ensuring the vacuum integrity of the receiver tube for over 30 years.
2. High-Transmittance AR Coating
Cover tube solar transmittance ≥96% with a 6.5H hardness. It performs excellently in acid salt spray and damp heat tests, delivering 3.5% higher efficiency than industry standards.
3. Advanced High-Vacuum Coating
Absorptance (α) ≥0.955 and emittance (ε) ≤0.05 (at 100°C). This significantly reduces convective and radiative heat loss, enabling high-efficiency collection in all weather conditions.
4. Precision Smart Tracking System
Features a tracking accuracy of ≤0.1°. Equipped with automatic wind protection, the system resets during extreme weather (high winds/snow), increasing overall system efficiency by 2%.
[Technical Specifications]
Parameter
Value
Operating Temperature
80°C - 550°C
Photothermal Efficiency
3.5x higher than PV
Collector Aperture
5.7m / 6.0m (Optional)
Vacuum Level
≤ 5.0×10⁻⁵ Pa
Reflectivity
≥ 94% (Low-iron tempered silver mirrors)
Design Life
30 Years (Efficiency no recession)
[ Wide Applications]
Low Temp (40-80°C): Municipal heating, hotel hot water systems, and swimming pool heating.
Medium Temp (80-260°C): Industrial process steam for textiles, food, chemicals, and timber drying.
High Temp (>260°C): Concentrated Solar Power (CSP) and solar-driven desalination.
[ Economic Analysis & ROI]
Based on Life Cycle Cost (LCC) analysis over 30 years, the total cost of this system (including installation and maintenance) is only 1/5 of natural gas and 1/10 of electric heating systems. The typical payback period is 3-5 years.
[About CSP Group]
CSP Holding Group is a world-leading provider of concentrating solar thermal core components. With state-of-the-art glass-to-metal sealing lines and R&D labs, we are dedicated to providing one-stop green energy integration solutions for global industrial clients.
Q1:How many projects have you done?
Answer: We already did many projects around the world,production line have been exported to more than 20 countries around the world.such as Greece,India,Uzbekistan,Tajikistan,Spanish,Brazil,Mexico and etc. Q2: Do you have any other products? Answer: Yes, we also have all of solar themal products,including solar water heater,solar collector,solar vacuum tube and spare parts of solar water heater Q3: What are your payment terms? Answer: 50% by T/T in advance, 50% by T/T before loading Q4: What is your price like? Answer: Our prices are very reasonable and cost-effective. Q5: Do you support OEM and ODM? Answer:Yes,we can customize the product for you Q6: Why choose us for production line cooperation? Answer:We provide a full range of services,including product design,equipment manufacturing,factory layout design,equipment installation and commissioning,technical training,production management and spare parts procurement.
Q7: What's the projects you did? Answer: 1.Flat-plate solar collector and enamel water tank production line in Europe 2.Electric water heater production line in Uzbekistan,China first full production line export. 3.Solar and electric water heater production line in India,the largest factory in India. 4.Solar and electric water heater production line in Tajikistan and Kuwait 5.Roll forming line in Brazil and Greece.
Q8: What is your delivery time? Answer:This depends on the production line machines quantity,around 1 month can delivery
Q9: What are the terms of your delivery? Answer:We accept terms such as EXW, FOB, and CIF. Q10: Do you have a certificate? Answer:Most of our products have passed CE certification. If you need other certifications, we can assist you in completing them
