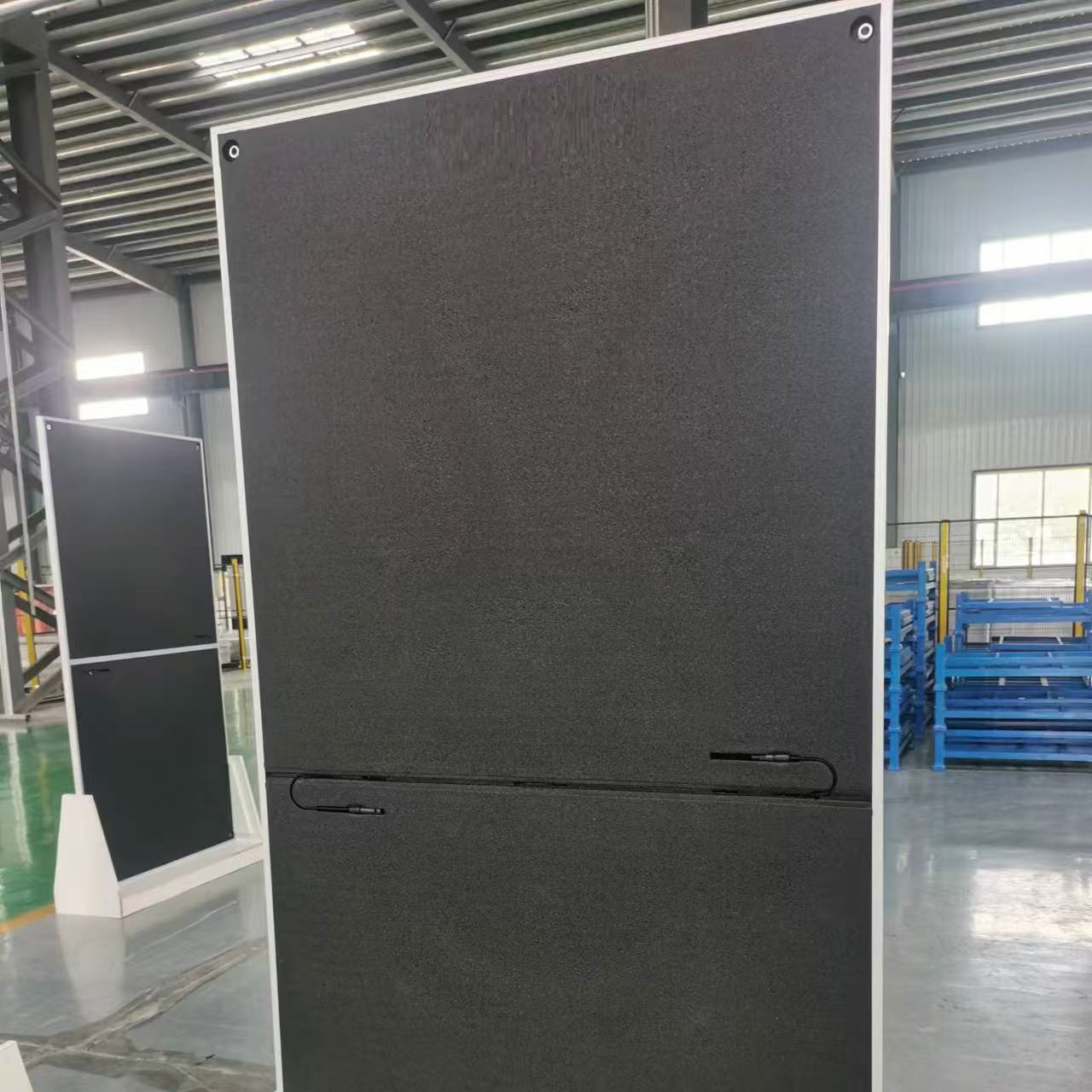

High-Efficiency PVT Solar Collector: The Integrated Solution for Electricity and Heat

Revolutionizing Solar Energy Utilization

The High-Efficiency PVT (Photovoltaic Thermal) Solar Collector represents a transformative leap in renewable energy technology. Unlike conventional solar panels, thisboth electricity and usable heat** within a single, optimized unit. By integrating photovoltaics and solar thermal collection, PVT systems address two critical energy needs while maximizing space efficiency and energy yield per square meter.

The Science of Synergy: How PVT Technology Works

PVT modules fundamentally solve a key limitation of traditional PV panels: thermal waste. Standard photovoltaic cells experience reduced electrical efficiency as operating temperatures rise due to absorbed solar heat. PVT collectors ingeniously capture this excess integrated heat-exchange mechanisms:

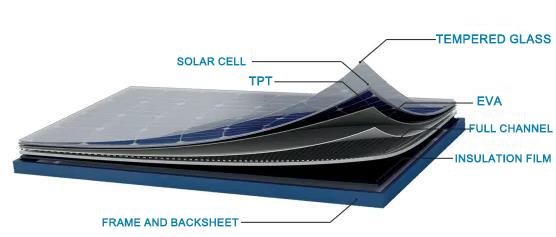

1. Photovoltaic Layer: Converts sunlight into electricity with high efficiency.

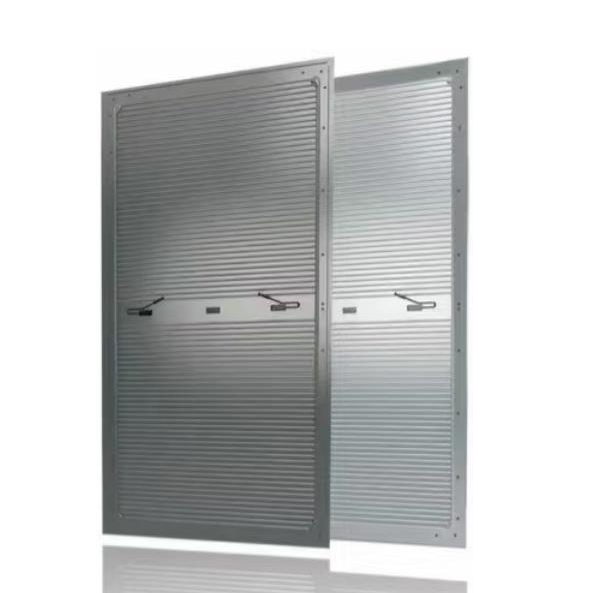

2. Thermal Absorber Layer: Captures waste heat generated by the PV cells and from incident solar radiation.

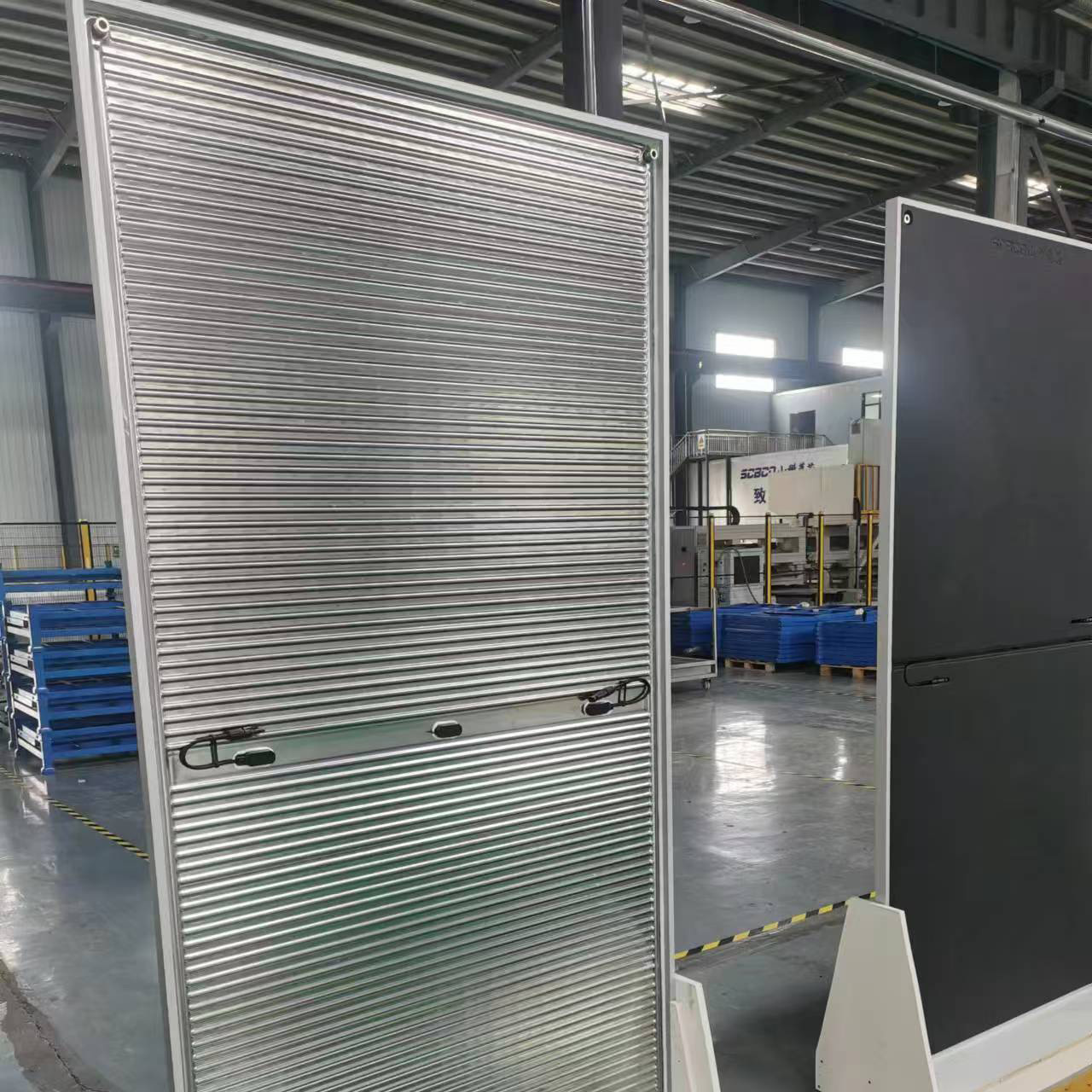

3. Heat Transfer System: A fluid (typically a glycol-water mixture or air) circulates through channels bonded to the absorber, efficiently extracting the captured thermal energy.

This cogeneration process results in significantly higher **overall energy compared to standalone PV or solar thermal systems. The harvested thermal energy is readily available for immediate use or storage, providing hot water or space heating.

Key Advantages Driving Adoption

The High-Efficiency PVT Solar Collector delivers compelling benefits across residential, commercial, and industrial sectors:

• Maximized Energy Output & Land Use: Generates more total energy (kWh) per unit area than separate PV and thermal systems, ideal for space-constrained installations.
• Performance:** Actively cooling the PV cells maintains their optimal operating temperature, boosting electrical output by up to 15-20% compared to uncooled PV panels, especially in warm climates.
• Reduced Carbon Footprint: Provides a substantial displacement of fossil fuels used for both electricity generation and heating/hot water production, significantly lowering CO2 emissions.
• Cost Synergies: Combines the installation, mounting, and maintenance costs of two separate systems into one, offering faster return Utility:** Provides valuable heat energy even during periods of lower solar irradiance or in winter months, enhancing system utilization.
• Versatile Applications: Supplies sustainable energy for:
  • Residential: Electricity + Domestic Hot Water (DHW) + Space Heating (via heat pumps or radiators).
  • Commercial: Electricity + DHW + Process Heat (e.g., hotels, laundries, swimming pools) + Space Heating/Cooling (via absorption chillers).
  • Industrial: Pre-heating for industrial processes, DHW for facilities, supplemental space heating.

The Core of the System: Intelligent Integration

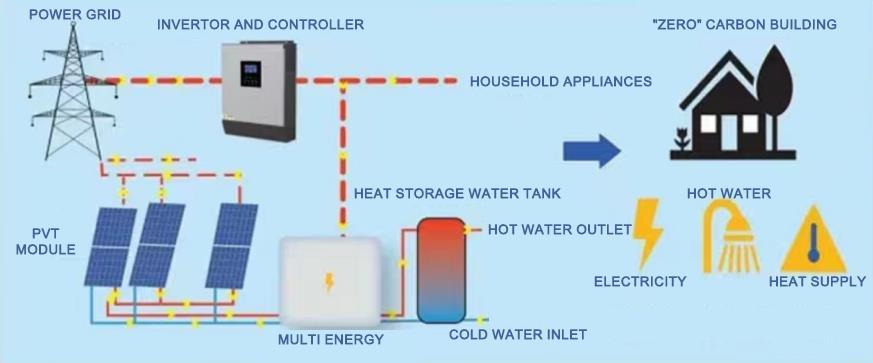

The true power of the High-Efficiency PVT Solar Collector lies in its role as the cornerstone of a Photovoltaic Thermal Hybrid System. This is more than just a panel; it's an integrated multi-energy solution:

1. PVT Modules: The primary energy harvesting units.
2. Heat Transfer & Storage: Piping, pumps, controllers, and insulated thermal storage tanks (e.g., buffer tanks, DHW cylinders).
3. Energy Management: Intelligent control systems optimize the flow of electricity (to grid, battery, or direct use) and heat (to storage or direct demand), prioritizing based on real-time needs, tariffs, and weather forecasts.
4. Complementary Systems: Seamlessly integrates with heat pumps, conventional boilers (as backup), or absorption cooling systems to provide a comprehensive, resilient, and highly efficient energy supply.

This integrated approach ensures that the captured solar energy is utilized in the most effective way possible, minimizing waste and maximizing self-consumption and cost savings.

Why Choose Our High-Efficiency PVT Solar Collector?

Our PVT systems are engineered for durability, performance, and reliability:

• Advanced Materials: Utilizing high-transmission, low-iron tempered glass, durable backsheets, and corrosion-resistant absorbers/heat exchangers.
• Optimized Thermal Bonding: Proprietary techniques ensure excellent plate for maximum heat extraction.
• Rigorous Testing: Subjected to extensive performance and quality testing (e.g., IEC 61215, IEC 61730, Solar Keymark) to guarantee long-term operation under harsh conditions.

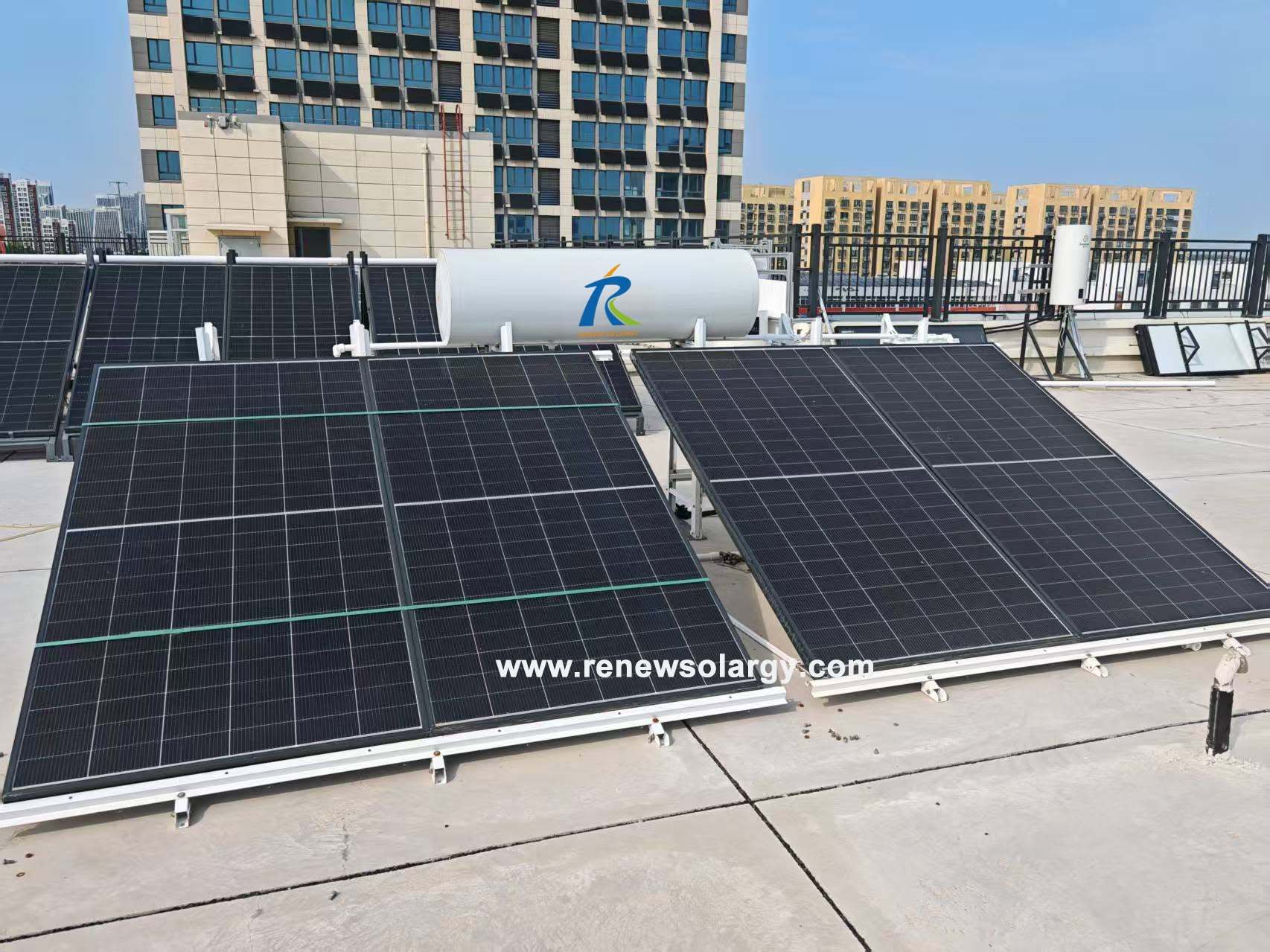

• Scalable Solutions: Available in configurations suitable for small residential rooftops to large commercial/industrial arrays.

The High-Efficiency PVT Solar Collector is not merely an incremental improvement; it's a paradigm shift towards truly optimized energy utilization. By generating valuable electricity and high-grade heat from the same footprint, it offers unparalleled efficiency, significant cost savings, and a powerful tool for decarbonization.

Ready to unlock the full potential of solar energy for your project?

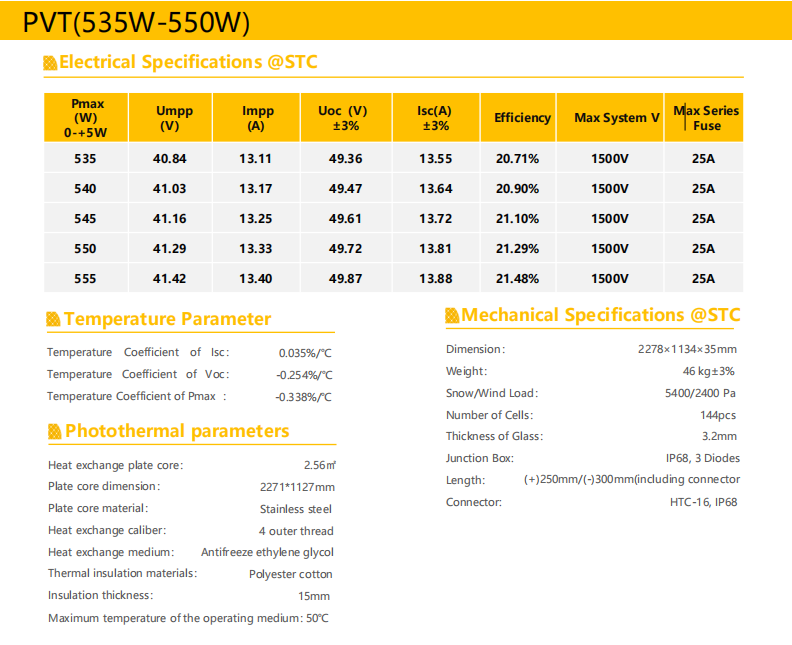

Standard test conditions:  Irradiance 1000W/㎡       Temp 25℃       AM=1.5

Nominal operating temp:  Irradiance 800W/㎡          Temp 20℃      Wind speed 1m/s
